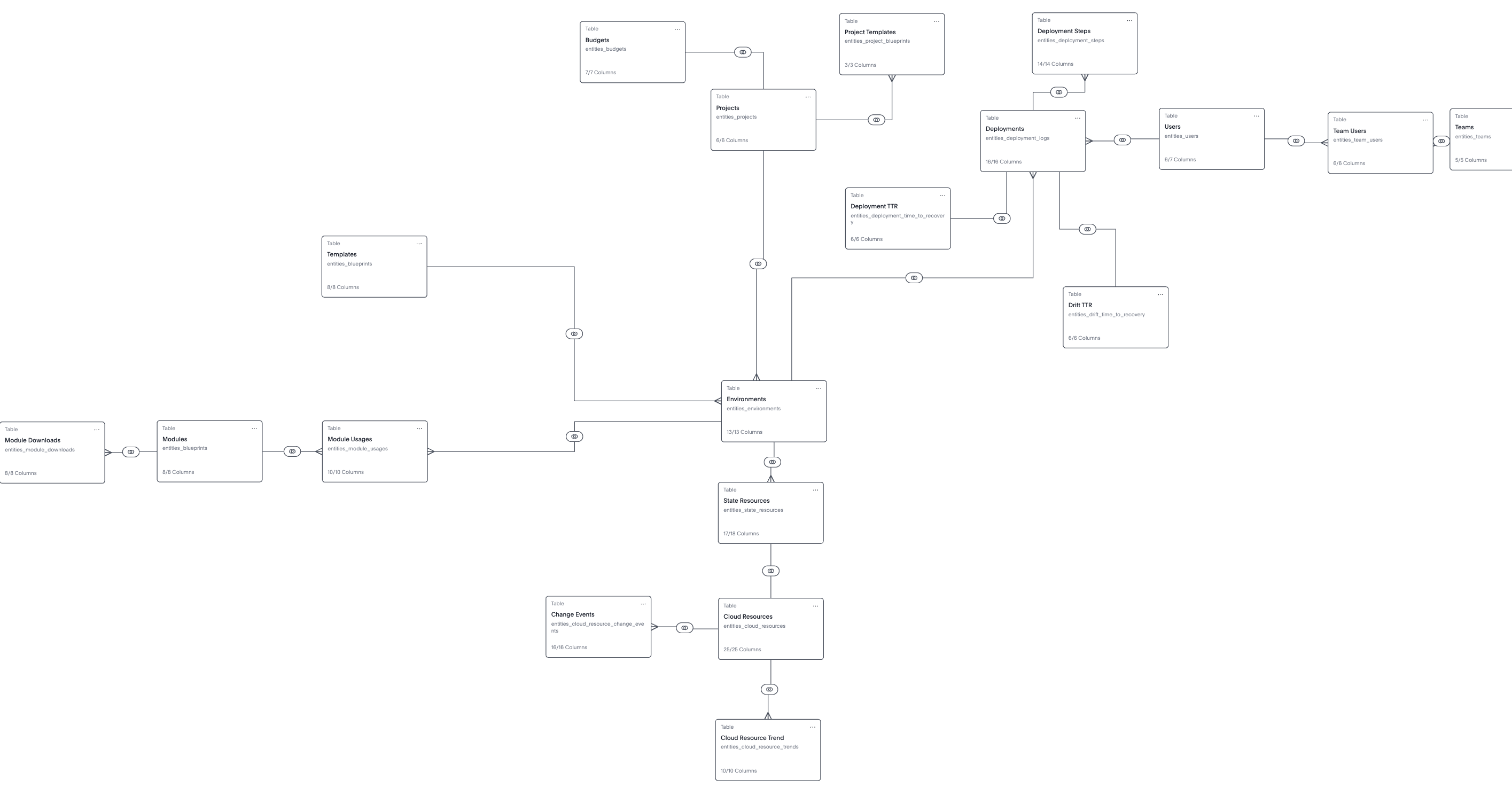

Full Entities Relational Diagram:
Elaborating on the Main Entities:
| Table | Fields | Connects To | Description |
|---|---|---|---|
| Projects | Name, Dates | Templates, Environments, Budgets | |
| Environments | Name, Dates, Template data, Status, Drift Status | Projects, Deployments, Daily Costs, State Resources, Templates, Module Usage | |
| Deployments | Type, Drift Detected, Duration, Error, Date, Start/Finish Times, IaC version, Status | Environments, Deployment Stepsand Users (which started the deployment) | |
| Deployment Steps | Name, Duration, Start/Compete Times, Status | Deployments | |
| Templates | Name, Dates, Type, Project Association | Projects, Environments | |
| Users | Name, Dates, Email | Deployments (they started), Teams | |
| Teams | Name, Dates | Users | |
| Budgets | Date, Time Frame, Amount | Projects | |
| Modules | Name, Dates | Module Downloads, Module Usages | |
| Module Downloads | Date, Version | Modules | How many times a module was downloaded |
| Module Usage | Dates, Provider, Version | Modules, Environments | Which Environments use which modules |
| State Resources | Dates, Type, Cloud Provider, Account, Region, IaC tool, Module, Provider, Deployment (last one that managed it) | Environments , Cloud Resources | All resources created by your env zero Environments |
| Cloud Resources | Name, Dates, IaC/API/Click Operations, First Seen, Severity, Type, Service, Management Type, Cloud Provider | State Resources, Change Events, Cloud Resource Trends | All resources found in the cloud (which may or may not be managed using env zero) |
| Change Events | Event Name, Dates, User Agent, Username | Cloud Resources | All change events found in the cloud |
| Cloud Resource Trends | Dates, IaC/API/Click Count, Type | Cloud Resources |
Sub EntitiesIn the env zero data model, we also store sub-entity data (sub environments and sub deployment logs of workflows).These sub-entities are not counted in pricing calculations, but are included when analyzing usage with Cloud Analyst.
