Environment Outputs let you export data generated by OpenTofu/Terraform/Terragrunt/Pulumi/CloudFormation environments and use it as input variables in other environments. This is useful for sharing configuration values like VPC IDs, database endpoints, or security group IDs across your infrastructure.
Environment Outputs ConsumersAny environment - no matter the IaC type - can consume environment outputs.The list above names which IaC framework environment outputs can be exported.
Self-Hosted Agent Support
  • Environment Outputs are not supported for self hosted agents prior to version 3.0.724
  • Re-installation of the agent necessitates using the same encryption key: environmentOutputEncryptionKey(see below for details)
  • Outputs between different agents can be supported by using the same environmentOutputEncryptionKey
  • Outputs between Self-hosted agents and SaaS agent are not supported.

​
Environment Outputs Activation

To activate exporting Environment Outputs, a Project Admin must enable this feature within the project settings. This action necessitates opting in, signifying acknowledgment that env zero will store encrypted sensitive outputs on its platform. To opt in, navigate to the Policies tab within the project settings and locate the Environment Outputs checkbox.
NoteEnvironment Outputs are not consumable right after enabling the Environment Outputs policy.For an Environment’s Outputs to be consumable, it needs to be deployed at least once after the policy is enabled.

​
Self-Hosted Agents Activation

When employing a self-hosted agent, sensitive outputs undergo encryption using a key independent of env zero ownership. This approach ensures end-to-end encryption of sensitive values, thereby bolstering security measures to their fullest extent. The encryption key should be provided by the environmentOutputEncryptionKey helm value. See our Self-Hosted Agent - optional configuration for how to configure your agent.

​
Access Restriction

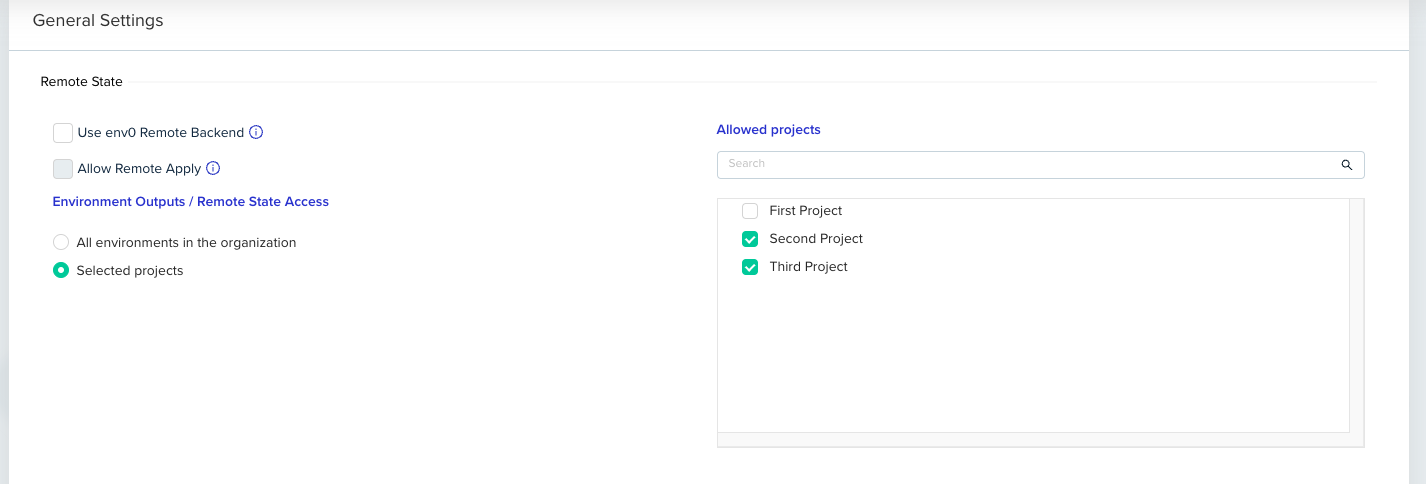

env zero supports restricting access to Environment Outputs, each Environment can configure which Projects can access its outputs inside the “Settings” Tab. If you don’t want any access restrictions - select the “All environments in the organization” option. By default, the outputs of every Environment are accessible to all Environments inside your organization until configured otherwise.

​
Using Environment Outputs

Environment Outputs are accessible as inputs for other environments. To utilize this functionality, simply add a variable of type “Environment Output,” following the example below:

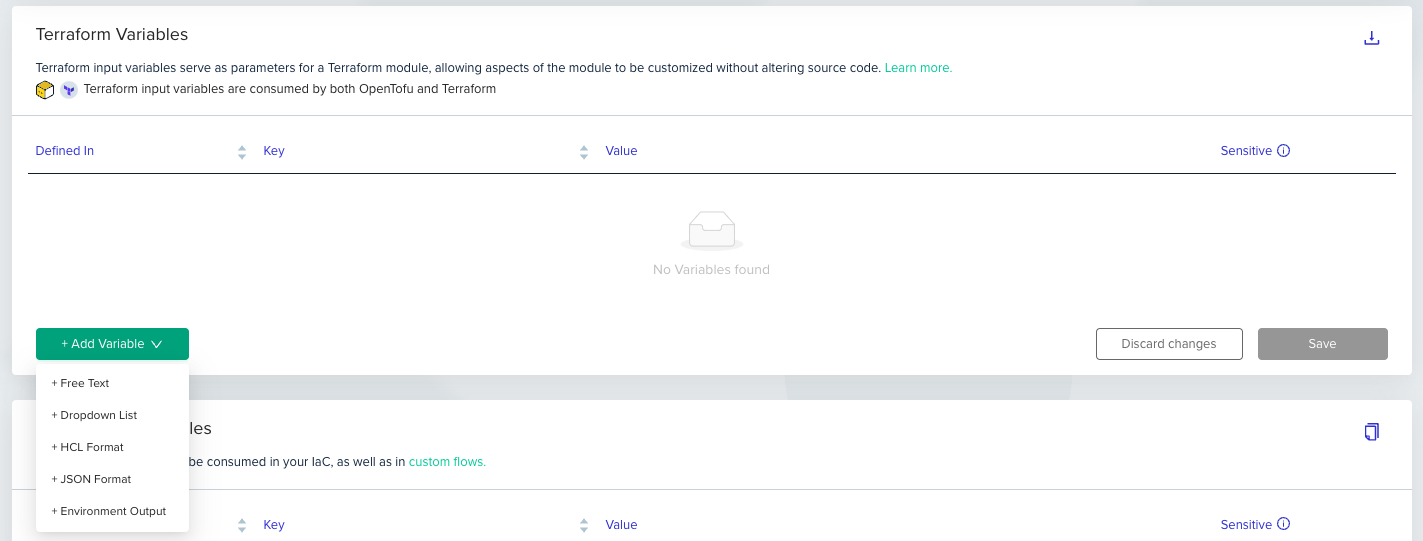

Environment Outputs Variable Selection
Good to Know
  • To utilize an output of an environment, the environment must be deployed initially for env zero to capture and store the output. In workflows, you can use the free-type option to specify output names for sub-environments that haven’t been deployed yet. See Using in Workflows below.
  • Environment Output variables are exclusively accessible within Environment and Project scopes.
  • Only strings are supported at this time. See the example below for working with maps and lists.
After adding the new variable to the list, you can select the relevant Environment Output by clicking the edit (pencil) button and selecting the relevant Environment/Sub-Environment Alias and Output Name:

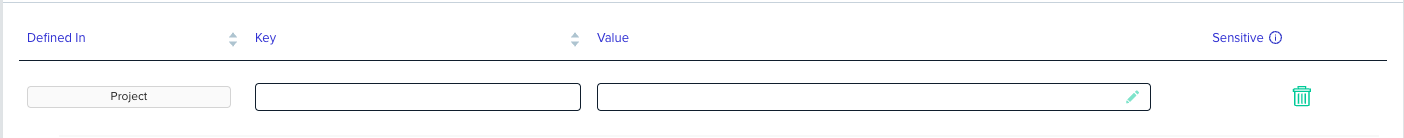

The value of an Environment Output Variable

​
Outputting Complex Types in Terraform

Currently, only string variable types are supported by Environment Outputs. This is partially to ensure interoperability between other frameworks (such as passing a TF variable to an Helm chart). So if your terraform code is outputting a map or a list, use jsonencode()to first convert the value to a string format. See example:
locals {
  tags = {"foo": "bar"}
}

# instead of this
# output "tags" {
#   value = local.tags
# }

# do this
output "tags" {
  value = jsonencode(local.tags)
}
No changes needed on the input variabletype=list() or map()Since Terraform allows input variables to be defined as strings with the proper JSON format, you don’t need to make any additional changes to your input definition.

​
Using in Workflows

Environment Outputs are especially useful in Workflows for passing data between sub-environments. For example, a networking stack can output a VPC ID that a compute stack consumes as an input variable. There are two ways to configure output-to-variable mappings in workflows: For reusable workflows and self-service scenarios, configure Environment Output variables directly on the workflow template. This pre-configures the mappings so end-users deploying the workflow do not need to set anything up. For step-by-step instructions, see Passing Outputs Between Sub-Environments.

​
Configuring at Deploy Time

You can also configure output-to-variable mappings on the workflow deploy page:
1

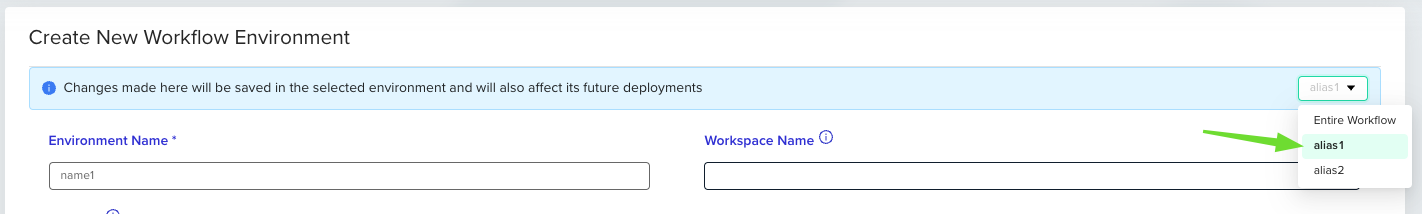

Select the Sub-Environment

On the workflow deploy page, select the sub-environment that needs to receive the output.
2

Add an Environment Output Variable

In the Variables section, add a new variable of type Environment Output (same as described above).
3

Select the Output Source

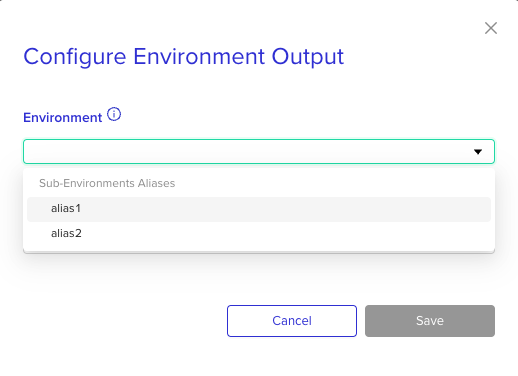

Click the edit button. In the modal, you will see a Sub-Environment Aliases section listing the aliases from your workflow file. Select the source sub-environment.
4

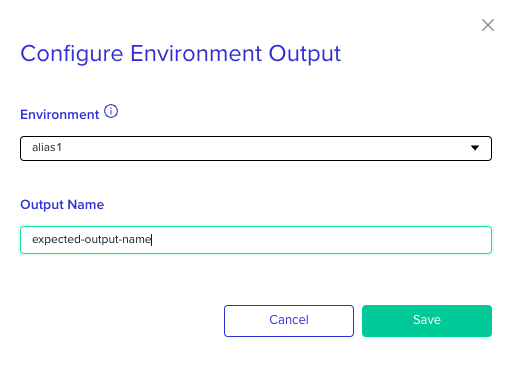

Select or Type the Output Name

Select an output from the dropdown. If the source sub-environment has never been deployed, you can free-type the expected output name.
5

Save and Deploy

Click Save and continue with the deployment.
On the first deployment of a workflow, outputs from sub-environments that haven’t been deployed yet won’t appear in the dropdown. Use the free-type option to enter the expected output name. env zero resolves outputs in dependency order based on the needs configuration in your workflow file.
