You can configure variables for your workflow by setting them on the workflow template. This includes configuring variables for each sub-environment’s template, so default values are applied automatically every time the workflow is deployed. This is useful for self-service scenarios where end-users should not need to configure variables manually.

​
Setting Variables on Sub-Environment Templates

In the workflow template wizard, under the Variables step, env zero loads the workflow file and displays the sub-environment templates. Select the sub-environment you want to configure.

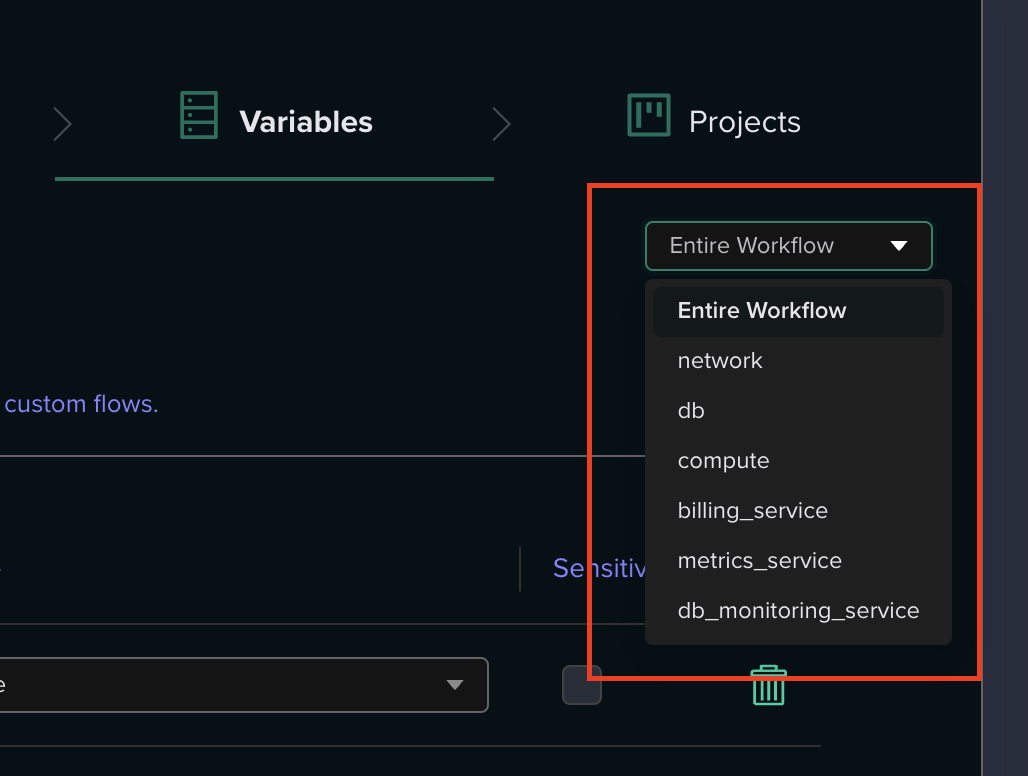

Workflow template wizard showing sub-environment template selection
Once you add a variable to a sub-environment template, it appears with a Workflow Template scope badge, indicating it was configured at the template level.

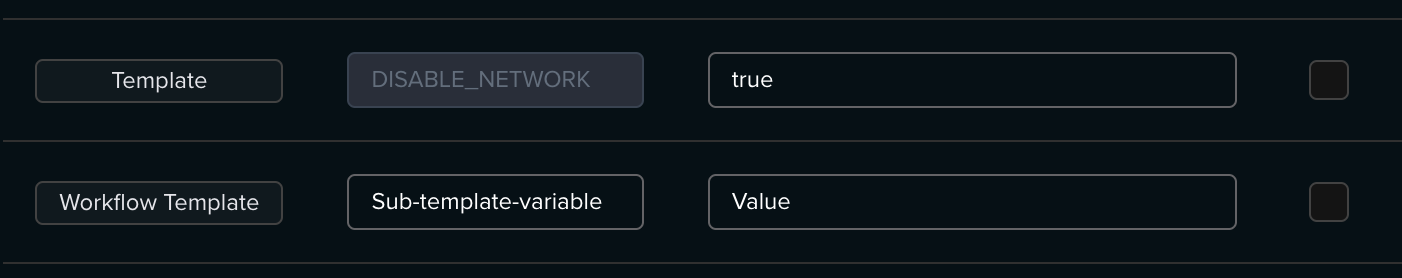

Variable with Workflow Template scope badge

​
Passing Outputs Between Sub-Environments

A common pattern in workflows is passing data from one sub-environment to another. For example, a networking stack might output a VPC ID that a compute stack needs as an input variable. You can configure this at the template level using Environment Output variables, so the output-to-variable mapping is pre-configured and applied automatically on every deployment.
Prerequisites
  • Environment Outputs must be enabled in the project’s Policies settings.
  • The source sub-environment must list the consuming sub-environment’s dependency using the needs field in the workflow file, ensuring correct deployment order.
1

Open the Workflow Template Wizard

Navigate to the workflow template and open the settings wizard. Go to the Variables step.
2

Select the Consuming Sub-Environment

From the sub-environment list, select the sub-environment that needs to receive the output (the one that depends on another sub-environment).
3

Add an Environment Output Variable

Click Add Variable, set the type to Environment Output, and enter the variable key (the Terraform/environment variable name you want to populate).
4

Configure the Output Source

Click the edit (pencil) button on the variable value. In the modal, you will see a Sub-Environment Aliases section listing the aliases from your workflow file. Select the alias of the sub-environment whose output you want to consume.Sub-Environment Aliases modal for selecting the source sub-environment whose output to consume
5

Select or Type the Output Name

If the source sub-environment has been deployed before, select from the dropdown of available outputs. If it has not been deployed yet, you can free-type the expected output name.Output name dropdown showing available outputs from the selected source sub-environment
6

Save

Click Save. The variable is now configured at the template level and will be resolved automatically on each deployment.

​
First Deployment Considerations

Environment Outputs from a sub-environment are only available after that sub-environment has been deployed at least once. On the first deployment of a workflow, outputs won’t appear in the dropdown.Use the free-type option to enter the expected output name manually. Because the needs field in your workflow file controls deployment order, the source sub-environment will deploy before the consuming one, and the output will be available by the time it is needed.

​
Configuring at Deploy Time

You can also configure output-to-variable mappings at deploy time on the workflow deploy page. For step-by-step instructions, see Using Environment Outputs in Workflows.

​
Cross-Environment Outputs

In addition to referencing outputs from sub-environments within the same workflow, you can reference outputs from any deployed environment in your organization. When configuring the output source, select the environment by its ID instead of a sub-environment alias. Learn more: Environment Outputs

​
Code-Based Configuration (Import Variable Plugin)

The steps above configure output mappings through the env zero UI. For teams that prefer a code-driven / GitOps approach where variable configurations are version-controlled, the Import Variable Plugin allows you to define output-to-variable mappings in env0.yaml custom flows using the ${env0-workflow:<alias>:<output_name>} syntax.
The ${env0-workflow:...} syntax is specific to the Import Variable Plugin and requires API key configuration. It is not part of the native Environment Outputs feature. For most users, the UI-based approach described above is recommended.You can also define Environment Output variables programmatically using the env0 Terraform Provider.

​
